Products Introduce
Products Parameters
|
Alloy Cored Wire |
Main components (%) |
Wire diameter (mm) |
Strip thickness (mm) |
Strip weight (g/m) |
Core powder weight (g/m) |
Uniformity (%) |
|
Silica calcium wire |
Si55Ca30 |
13 |
0.35 |
145 |
230 |
2.5-5 |
|
Aluminum calcium wire |
Ca26-30AI3-24 |
13 |
0.35 |
145 |
210 |
2.5-5 |
|
Calcium iron wire |
Ca28-35 |
13 |
0.35 |
145 |
240 |
2.5-5 |
|
Silica calcium barium wire |
Si55Ca15Ba15 |
13 |
0.35 |
145 |
220 |
2.5-5 |
|
Silica aluminum barium wire |
Si35-40Al 12-16 Ba9-15 |
13 |
0.35 |
145 |
215 |
2.5-5 |
|
Silica calcium aluminum barium wire |
Si30-45Ca9-14 |
13 |
0.35 |
145 |
225 |
2.5-5 |
|
Carbon cored wire |
C98s<0.5 |
13 |
0.35 |
145 |
150 |
2.5-8 |
|
High magnesium wire |
Mg 28-32, RE 2-4 Ca1.5-2.5, Ba 1-3 |
13 |
0.35 |
145 |
|
2.5-5 |
|
Silicon barium wire |
SI60-70 Ba4-8 |
13 |
0.35 |
145 |
230 |
2.5-5 |
|

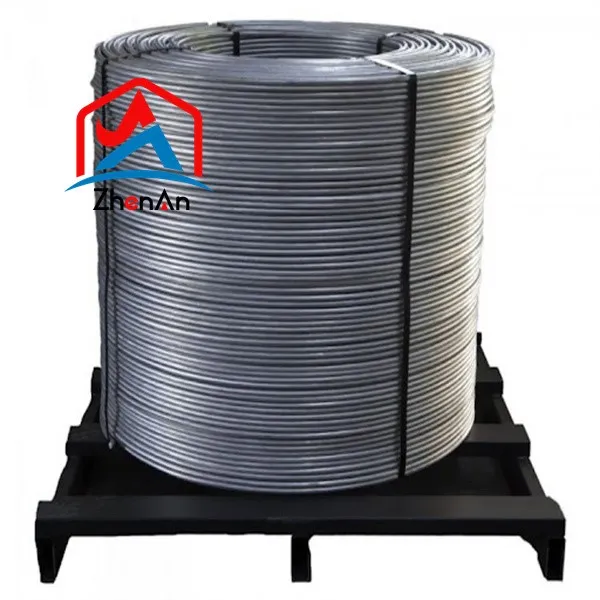

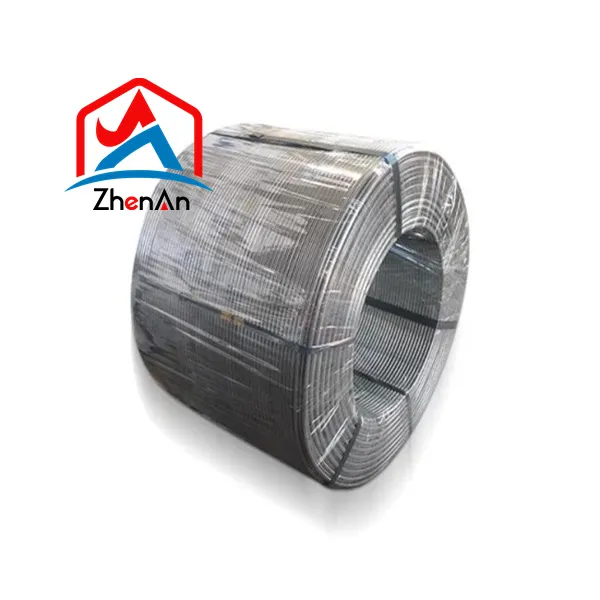

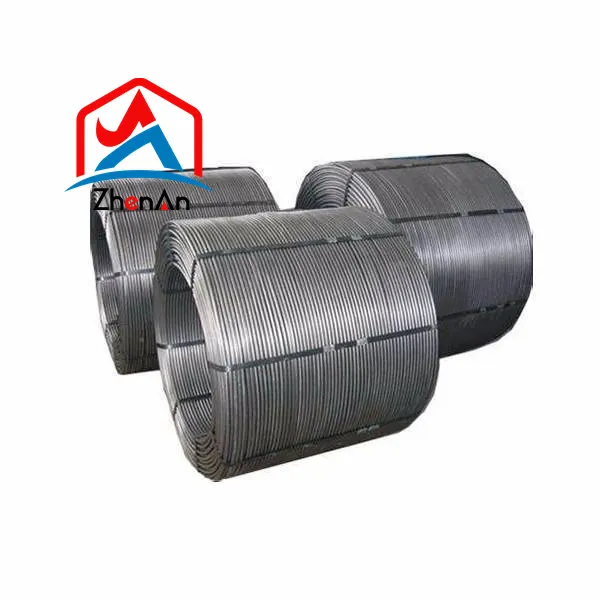

Coil Weight: 600kg±100kg, can be produced according to user requirements. |
||||||
|
Appearance quality of core-spun wire: firm covering, no seams, no broken lines, uniform core material composition, high filling rate. |
||||||
|
Packing: steel strap tight + waterproof plastic film + iron cover |
||||||
|
Cable packaging: Horizontal and vertical are two types of cable arrangement, divided into two types of packaging: internal tap type and external type. |
||||||
Application: spheroidizing wire/ inoculation wire/ spheroidizing cored wire/ casting steelmaking.
Packing method: horizontal and vertical, the cable can be divided into internal tap and external type.
Products Description
There are many kinds of alloy cored wires, including silicon-calcium cored wires, titanium-iron cored wires, boron-iron cored wires, silicon-manganese-calcium cored wires, rare-earth silicon-magnesium cored wires, rare-earth silicon-barium cored wires, silicon-calcium-barium cored wires, silicon-calcium-barium-aluminum cored wires, metal-magnesium cored wires, iron-calcium cored wires, calcium-iron cored wires, pure calcium cored wires and aluminum-calcium cored wires. These cored wires have different uses according to different alloy powders.
The preparation process of alloy cored wire includes the selection of raw materials, the preparation of alloy cored wire, drawing and polishing. The prepared alloy cored wire needs final inspection to check whether its size, hardness, strength and conductivity are up to standard. After passing the test, it will be classified and packaged to ensure its quality and application effect.
Alloy cored wire is an efficient alloy addition method, and its application is wide and diverse. For example, in metallurgical field, alloy cored wire plays an important role in steelmaking and casting. It can purify the form of steel inclusions, improve the castability of molten steel and improve the service performance of steel. In addition, it can significantly improve the alloy yield and reduce the alloy consumption, thus reducing the steelmaking cost and achieving significant economic benefits. Cored wires are mainly used to support and protect high-voltage transmission lines in the power field. Its characteristics of high strength, corrosion resistance and voltage breakdown resistance can effectively improve the safety and reliability of transmission lines and prevent accidents.
Cored wires are widely used in communication fields, such as telephones, network equipment and other communication systems, for transmitting data, voice and images. Its good electrical insulation and anti-interference ability can effectively reduce signal attenuation and signal-to-noise ratio, and improve the speed and quality of data transmission. Generally speaking, alloy cored wire has been widely used in many fields because of its unique structure and performance advantages, which provides strong support for improving product quality, reducing cost and improving production efficiency.
