introduction

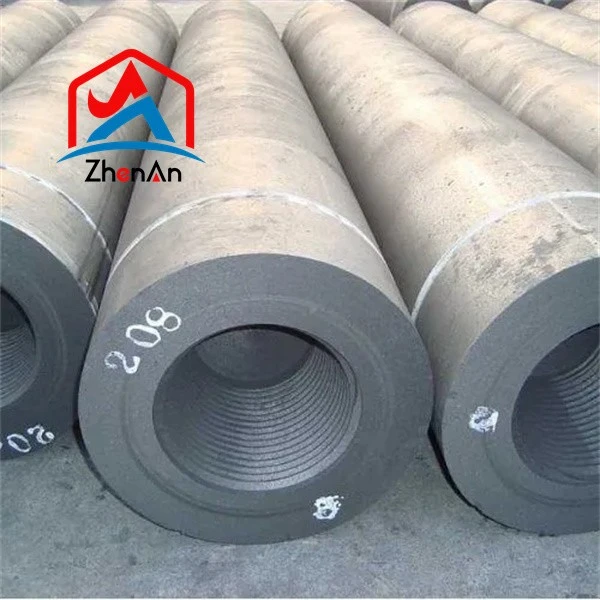

Graphite electrodes are conductors that release electrical energy in the form of an arc in an electric arc furnace to heat and melt the charge.
Parameters
The Graphite Electrode produced by ZhenAn is considered to be of high quality in the Chinese and international markets.
| RP (regular power) graphite electrode | ||||
| thing | unit | diameter | ||
| Φ75 - Φ3.00 | Φ350-Φ450 | Φ450-Φ500 | ||
| Resistivity≤ | micro ohms | 4.5-8.0 | 4.5-8.0 | 4.5-8.0 |
| Bending strength≥ | MPa | 8.0-18.0 | 8.0-18.0 | 8.0-18.0 |
| Elastic modulus≤ | grade point average | 8.5-12.0 | 8.5-12.0 | 8.5-12.0 |
| Bulk density ≥ | g/ cm3 | 1.60-1.80 | 1.60-1.80 | 1.60-1.80 |
| Thermal expansion coefficient (100-600 ℃ ) ≤ | x10 -6 / ℃ | 2.2-2.8 | 2.2-2.8 | 2.2-2.8 |
| Ash content ≤ | % | 0.3 | 0.3 | 0.3 |
| HP (high power) graphite electrode | ||||
| thing | unit | diameter | ||
| Φ100 - Φ400 | Φ450-Φ500 | Φ550-Φ600 | ||
| Resistivity≤ | micro ohms | 3.8-6.2 | 3.8-6.2 | 3.8-6.2 |
| Bending strength≥ | MPa | 11.0-20.0 | 11.0-20.0 | 11.0-20.0 |
| Elastic modulus≤ | grade point average | 8.0-13.0 | 8.0-13.0 | 8.0-13.0 |
| Bulk density ≥ | g/ cm3 | 1.65-1.85 | 1.65-1.85 | 1.65-1.85 |
| Thermal expansion coefficient (100-600 ℃ ) ≤ | x10 -6 / ℃ | 1.5-2.0 | 1.5-2.0 | 1.5-2.0 |
| Ash content ≤ | % | 0.3 | 0.3 | 0.3 |
| UHP (ultra high power) graphite electrode | ||||
| thing | unit | diameter | ||
| Φ300 - Φ400 | Φ450-Φ500 | Φ550-Φ700 | ||
| Resistivity≤ | micro ohms | 3.0-5.5 | 3.0-5.5 | 3.0-5.5 |
| Bending strength≥ | MPa | 12.0-25.0 | 12.0-25.0 | 12.0-25.0 |
| Elastic modulus≤ | grade point average | 16.0 | 16.0 | 16.0 |
| Bulk density ≥ | g/ cm3 | 1.70-1.90 | 1.70-1.90 | 1.70-1.90 |
| Thermal expansion coefficient (100-600 ℃ ) ≤ | x10 -6 / ℃ | 0.8-1.4 | 0.8-1.4 | 0.8-1.4 |
| Ash content ≤ | % | 0.2 | 0.2 | 0.2 |
REMARK: the above data is just on the standard of YB/T, the actual product is very different from the above. For the actual, be free to contact us, please.
Payment term: T/T OR L/C
Delivery time: Within 7 days after receiving prepayment
Service: We can supply you with free samples, a booklet, a laboratory test report, an Industry Report, etc.
Welcome to our factory and company for a visit!
application
Graphite electrodes are selected for use in electric arc furnaces due to their high electrical conductivity, low electrical resistance and excellent resistance to thermal shock.
