Why Is Zinc Aluminum Alloy Wire 95/5 One of the Most Cost-Effective Thermal Spray Materials for Corrosion Protection?
✅ Zn 95% + Al 5% optimized alloy composition
✅ Up to 2-5 times longer service life than conventional paint systems
✅ Available diameters: 1.6mm, 2.0mm, 2.5mm, 3.0mm
✅ Suitable for bridges, offshore platforms, pipelines, tanks, wind towers, and steel structures
✅ Stable alloy composition and smooth wire feeding performance
✅ Compatible with Arc Spray and Flame Spray Systems
For infrastructure owners seeking long-term corrosion protection at a reasonable cost, Zinc Aluminum Alloy Wire 95/5 has become one of the most widely specified metallizing materials worldwide.
What Is Zinc Aluminum Alloy Wire 95/5?
Zinc Aluminum Alloy Wire 95/5 is a thermal spraying consumable consisting of approximately 95% zinc and 5% aluminum. It is designed to combine the sacrificial protection capability of zinc with the enhanced atmospheric corrosion resistance provided by aluminum.
The addition of 5% aluminum significantly improves coating durability compared with pure zinc coatings while maintaining excellent cathodic protection properties.
As a result, Zn-Al 95/5 wire is commonly used for steel bridges, transmission towers, offshore equipment, marine structures, and industrial facilities where long-term anti-corrosion performance is required.
What Are the Technical Specifications of Zinc Aluminum Alloy Wire 95/5?
| Item | Specification |
|---|---|
| Product Name | Zinc Aluminum Alloy Wire 95/5 |
| Zinc Content | 94%-96% |
| Aluminum Content | 4%-6% |
| Diameter | 1.6mm / 2.0mm / 2.5mm / 3.0mm |

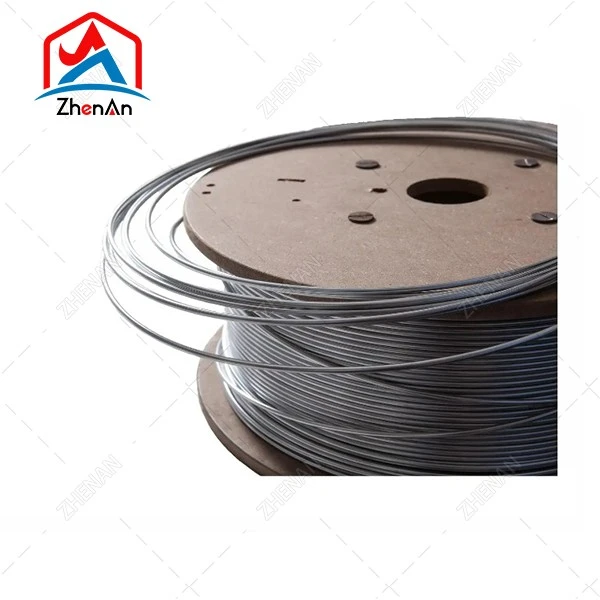

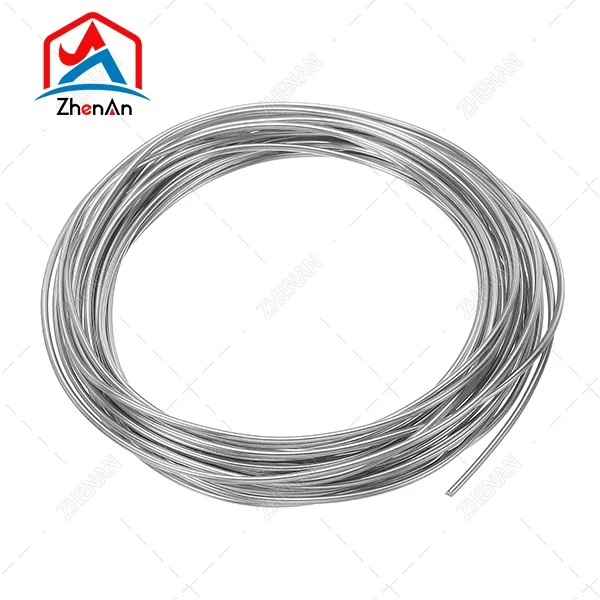

| Form | Spool Wire |
| Surface Condition | Smooth and Clean |
| Spray Method | Arc Spray / Flame Spray |
| Density | Approx. 6.8 g/cm³ |
| Coating Thickness | 100-500 μm |
| Packaging | 15kg, 20kg, 25kg Spools |
| Application | Thermal Spray Anti-Corrosion |
Why Is Zn-Al 95/5 Widely Used for Thermal Spray Coatings?
The popularity of Zn-Al 95/5 wire comes from its ability to balance performance and cost.
Pure zinc wire offers excellent sacrificial protection but may consume relatively quickly in aggressive environments. Aluminum-rich coatings provide superior atmospheric resistance but often involve higher material costs and different coating characteristics.
The 95/5 alloy provides an intermediate solution. The zinc component protects exposed steel through galvanic action, while the aluminum content enhances coating density and environmental durability.
This combination makes Zn-Al 95/5 particularly attractive for large infrastructure projects where lifecycle cost is a major consideration.
How Does Zinc Aluminum Alloy Wire 95/5 Protect Steel Structures?
During thermal spraying, the alloy wire is melted by an electric arc or flame.
Molten droplets are atomized and projected onto a prepared steel surface. These particles rapidly solidify and form a dense metallic coating.
The resulting coating protects steel through two mechanisms:
First, it acts as a physical barrier that isolates steel from moisture, oxygen, and corrosive contaminants.
Second, zinc provides sacrificial cathodic protection. Even if the coating becomes damaged, zinc preferentially corrodes before the underlying steel.
The aluminum component slows coating degradation and improves long-term atmospheric performance.
Where Is Zinc Aluminum Alloy Wire 95/5 Commonly Applied?
Bridge Protection
Steel bridges are continuously exposed to rain, humidity, deicing salts, and industrial pollution. Zn-Al 95/5 coatings significantly extend maintenance intervals.
Offshore Structures
Marine environments accelerate steel corrosion. Metallized coatings based on Zn-Al 95/5 help reduce lifecycle maintenance costs.
Wind Energy Projects
Wind turbine towers require reliable protection for decades of operation. Thermal spray coatings are widely adopted in this sector.
Water Treatment Facilities
Tanks, pipelines, and structural steel components benefit from durable metallized corrosion protection.
Industrial Plants
Chemical plants, power stations, and processing facilities use Zn-Al 95/5 coatings to protect exposed steel infrastructure.
How Does Zn-Al 95/5 Compare with Pure Zinc Wire?
Zinc Wire vs Zinc Aluminum Alloy Wire 95/5
| Property | Pure Zinc Wire | Zn-Al 95/5 Wire |
|---|---|---|
| Corrosion Resistance | Good | Better |
| Coating Density | Moderate | Higher |
| Service Life | Standard | Longer |
| Marine Performance | Good | Improved |
| Maintenance Frequency | Higher | Lower |
| Lifecycle Cost | Moderate | Lower |
For many infrastructure applications, Zn-Al 95/5 provides a more economical long-term solution than pure zinc wire.
How Does Zn-Al 95/5 Compare with Zn-Al 85/15?
Zn-Al 95/5 vs Zn-Al 85/15
| Property | Zn-Al 95/5 | Zn-Al 85/15 |
|---|---|---|
| Zinc Content | Higher | Lower |
| Aluminum Content | Lower | Higher |
| Cathodic Protection | Excellent | Excellent |
| Marine Corrosion Resistance | Very Good | Superior |
| Cost Efficiency | Higher | Moderate |
| Infrastructure Use | Very Common | Premium Projects |
Zn-Al 95/5 is often selected for general infrastructure protection, while Zn-Al 85/15 is typically preferred for highly aggressive marine environments.
How Does Zn-Al 95/5 Compare with Aluminum Wire?
Zn-Al 95/5 vs Aluminum Wire
| Property | Zn-Al 95/5 | Aluminum Wire |
|---|---|---|
| Sacrificial Protection | Strong | Limited |
| Barrier Protection | Excellent | Excellent |
| Cost | Lower | Higher |
| Steel Structure Protection | Better | Project Dependent |
| Thermal Spray Infrastructure Projects | Widely Used | Selective Use |
For steel structures requiring galvanic protection, Zn-Al 95/5 generally provides better overall performance.
What Factors Influence the Performance of Zn-Al 95/5 Coatings?
The effectiveness of the coating depends on multiple factors.
Wire chemistry consistency directly affects sprayability and coating performance. Variations in zinc or aluminum content may influence coating density and corrosion behavior.
Wire diameter tolerance affects feeding stability and spraying efficiency.
Surface preparation is equally critical. Improper blasting can reduce coating adhesion regardless of wire quality.
Coating thickness, sealing treatments, and environmental exposure conditions also influence final service life.
For long-term infrastructure projects, selecting wire with stable chemical composition and controlled manufacturing quality is essential.
Why Are Infrastructure Owners Choosing Zn-Al 95/5 Over Traditional Coatings?
Many asset owners now focus on lifecycle cost rather than initial coating cost.
While thermal spray systems may require higher initial investment than paint-only solutions, maintenance intervals are significantly extended.
Reduced shutdowns, fewer repairs, and longer asset life often make Zn-Al 95/5 coatings a financially attractive option.
This is particularly important for:
Bridges
Port facilities
Wind towers
Offshore platforms
Industrial steel structures
Water treatment plants
Conclusion
Zinc Aluminum Alloy Wire 95/5 combines the sacrificial protection of zinc with the enhanced corrosion resistance of aluminum. It is one of the most widely used thermal spray consumables for protecting steel structures against atmospheric, industrial, and marine corrosion.
Compared with pure zinc wire, Zn-Al 95/5 offers improved durability and lower lifecycle costs. Compared with Zn-Al 85/15, it provides a more economical solution for many general corrosion protection projects.
For buyers seeking reliable thermal spray wire with proven infrastructure performance, Zn-Al 95/5 remains a preferred choice worldwide.
Looking for a Reliable Zn-Al 95/5 Wire Supplier?
✔ Stable Zn/Al Ratio
✔ Smooth Feeding Performance
✔ Multiple Wire Diameters Available
✔ Export Packaging
✔ COA and Quality Documents Available
✔ Fast Global Delivery
E-mail: market@zanewmetal.com
WhatsApp: +86 15518824805
FAQ
What is Zinc Aluminum Alloy Wire 95/5?
Zinc Aluminum Alloy Wire 95/5 is a thermal spray alloy wire containing approximately 95% zinc and 5% aluminum used for long-term corrosion protection of steel structures.
Why is 5% aluminum added to zinc wire?
The aluminum improves coating density, environmental resistance, and coating durability while maintaining zinc's sacrificial protection properties.
Which thermal spray processes use Zn-Al 95/5 wire?
Zn-Al 95/5 is commonly used in arc spraying and flame spraying systems.
What wire diameters are typically available?
Common diameters include 1.6mm, 2.0mm, 2.5mm, and 3.0mm.
Is Zn-Al 95/5 suitable for marine environments?
Yes. It is widely used for offshore structures, ports, coastal bridges, and marine infrastructure.
How does Zn-Al 95/5 differ from Zn-Al 85/15?
Zn-Al 95/5 contains more zinc and less aluminum, making it more cost-effective for general corrosion protection applications, while Zn-Al 85/15 is often selected for harsher marine environments.
Can Zn-Al 95/5 coatings be painted?
Yes. Many specifications include sealers and topcoat paint systems over metallized coatings to maximize service life.
What should buyers evaluate when selecting a Zn-Al 95/5 supplier?
Buyers should verify chemical composition consistency, wire diameter tolerance, production capacity, quality documentation, export experience, and packaging standards.
