Graphite As Electrode specification
The Carbon Electrode by ZhenAn is considered to be of high quality in the Chinese and international markets.
| ITEM | Regular power | High power | Ultra High Power | ||||
| UNIT | 3-24inch | 4-24inch | 14-24inch | 12-20inch | 22-28inch | ||
| φ75-600mm | φ100-300mm | φ350-600mm | φ300-500mm | φ550-700mm | |||
| Resistivity | Electrode | μΩ·m | 7.0-9.0 | 5.8-6.8 | 5.5-6.5 | 4.8-5.8 | 4.5-5.5 |
| Nipple | 4.0-4.5 | 4.0-5.0 | 3.5-4.0 | 3.0-4.0 | 2.5-3.5 | ||
| Bending strength | Electrode | Mpa | 8.0-12.0 | 9.0-12.0 | 10.0-14 | 10.0-15.0 | 12.0-16.0 |
| Nipple | 19.0-22.0 | 16.0-20 | 20.0-23.0 | 20.0-24.0 | 22.0-25.0 | ||
| Elastic Modulus | Electrode | Gpa | 7.0-11.0 | 8.0-12.0 | 8.0-12.0 | 9.0-13.0 | 10.0-14.0 |
| Nipple | 12.0-14.0 | 12.0-15.0 | 14.0-16.0 | 15.0-18.0 | 16.0-19.0 | ||
| Bulk density | Electrode | g/cm3 | 1.60-1.65 | 1.68-1.70 | 1.68-1.72 | 1.70-1.75 | 1.70-1.75 |
| Nipple | 1.75-1.8 | 1.78-1.82 | 1.78-1.82 | 1.78-1.85 | 1.8-1.85 | ||
| Ash | Electrode | % | 0.3 | 0.3 | 0.3 | 0.2 | 0.2 |
| Nipple | |||||||
| Electrode | 10-6/ºC | 2.0-2.4 | 1.6-2.0 | 1.6-1.9 | 1.1-1.4 | 1.1-1.4 | |
| CTE | Nipple | 100-600ºC | 1.8-2.2 | 1.1-1.5 | 1.1-1.4 | 0.9-1.2 | 0.9-1.2 |
REMARK: the above data is just on the standard of YB/T, the actual product is different from the above. For the actual, be free to contact us, please.

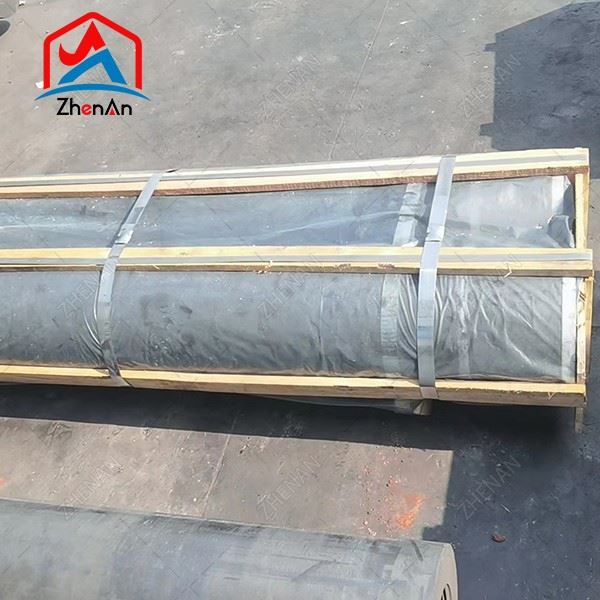

Packaging Details: in wooden case or package as customer's order
Payment term: T/T OR L/C
Delivery time: Within 7 days after receiving prepayment
Service: We can supply you with free samples, a booklet, a laboratory test report, an Industry Report, etc.
Welcome to our factory and company for a visit!
Manufacturer Supply Graphite Electrode RP HP UHP Graphite Electrode
Graphite As Electrode has high density, high-temperature resistance, high mechanical strength, and strong chemical stability.
The surface of graphite electrodes can be treated with an anti-oxidation coating.
Graphite electrodes for Electrolysis are resistant to corrosion, strong acids, and strong alkalis.
Graphite Electrode Uhp has excellent thermal shock resistance, electrical conductivity, and thermal conductivity.
Graphite Electrodes Electric Arc Furnace has strong wear resistance and lubricity.
Graphite Is Used As an Electrode that has a long service life.
If you need, please feel free to contact us. We will provide you with the most competitive price, high quality and excel service.
