introduction

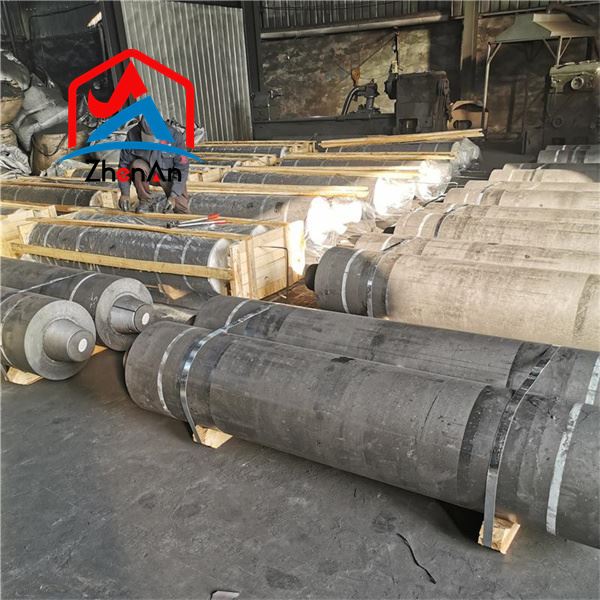

Graphite electrode is a high-temperature resistant graphite conductive material. Ultra-high power graphite electrode (UHP), is only used in ultra-high power steelmaking electric arc furnaces.
Parameters
The Graphite Electrode produced by ZhenAn is considered to be of high quality in the Chinese and international markets.
| RP (regular power) graphite electrode | ||||
| thing | unit | diameter | ||
| Φ75 - Φ3.00 | Φ350-Φ450 | Φ450-Φ500 | ||
| Resistivity≤ | micro ohms | 4.5-8.0 | 4.5-8.0 | 4.5-8.0 |
| Bending strength≥ | MPa | 8.0-18.0 | 8.0-18.0 | 8.0-18.0 |
| Elastic modulus≤ | grade point average | 8.5-12.0 | 8.5-12.0 | 8.5-12.0 |
| Bulk density ≥ | g/ cm3 | 1.60-1.80 | 1.60-1.80 | 1.60-1.80 |
| Thermal expansion coefficient (100-600 ℃ ) ≤ | x10 -6 / ℃ | 2.2-2.8 | 2.2-2.8 | 2.2-2.8 |
| Ash content ≤ | % | 0.3 | 0.3 | 0.3 |
| HP (high power) graphite electrode | ||||
| thing | unit | diameter | ||
| Φ100 - Φ400 | Φ450-Φ500 | Φ550-Φ600 | ||
| Resistivity≤ | micro ohms | 3.8-6.2 | 3.8-6.2 | 3.8-6.2 |
| Bending strength≥ | MPa | 11.0-20.0 | 11.0-20.0 | 11.0-20.0 |
| Elastic modulus≤ | grade point average | 8.0-13.0 | 8.0-13.0 | 8.0-13.0 |
| Bulk density ≥ | g/ cm3 | 1.65-1.85 | 1.65-1.85 | 1.65-1.85 |
| Thermal expansion coefficient (100-600 ℃ ) ≤ | x10 -6 / ℃ | 1.5-2.0 | 1.5-2.0 | 1.5-2.0 |
| Ash content ≤ | % | 0.3 | 0.3 | 0.3 |
| UHP (ultra high power) graphite electrode | ||||
| thing | unit | diameter | ||
| Φ300 - Φ400 | Φ450-Φ500 | Φ550-Φ700 | ||
| Resistivity≤ | micro ohms | 3.0-5.5 | 3.0-5.5 | 3.0-5.5 |
| Bending strength≥ | MPa | 12.0-25.0 | 12.0-25.0 | 12.0-25.0 |
| Elastic modulus≤ | grade point average | 16.0 | 16.0 | 16.0 |
| Bulk density ≥ | g/ cm3 | 1.70-1.90 | 1.70-1.90 | 1.70-1.90 |
| Thermal expansion coefficient (100-600 ℃ ) ≤ | x10 -6 / ℃ | 0.8-1.4 | 0.8-1.4 | 0.8-1.4 |
| Ash content ≤ | % | 0.2 | 0.2 | 0.2 |
REMARK: the above data is just on the standard of YB/T, the actual product is very different from the above. For the actual, be free to contact us, please.
Payment term: T/T OR L/C
Delivery time: Within 7 days after receiving prepayment
Service: We can supply you with free samples, a booklet, a laboratory test report, an Industry Report, etc.
Welcome to our factory and company for a visit!
application
Graphite electrodes are also used as conductive materials in submerged arc furnaces for smelting yellow phosphorus, industrial silicon, abrasives, and other materials.
