Products Description
A cooling structure on a seamless cored wire machine comprises a seamless cored wire machine, a controller is fixed on the upper side of the front end of the seamless cored wire machine, a third shell is fixedly connected to the upper side of the top end of the seamless cored wire machine, a water outlet pipe is connected to the outer side of the rear end of the third shell, a water pump is connected to the outer side of the top end of the third shell, a water inlet pipe is connected to the outer side of the rear end of the water pump, a copper cooling plate is fixedly connected to the inner side of one end of the third shell, a hole is provided on the inner side of the copper cooling plate, a first shell is fixedly connected to the outer side of one end of the copper cooling plate, a second shell is fixedly connected to the inner side of one end of the first shell, and a hole is provided on the inner side of the second shell. In the utility model, by providing the first shell, the second shell, the copper cooling plate, and the fan blades, cool air can be blown by the fan blades to cool the cored wire.
Products parameters
| Alloy Cored Wire Type | Diameter | Filling rate | Specification |

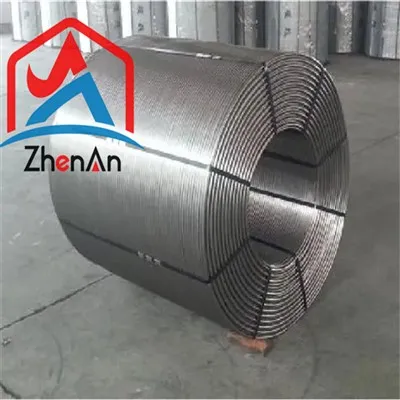

| CaSi Cored Wire | 9mm/13mm/16mm | 120/225/330 | Ca:30%min Si:55%min Al:1.5%max S:0.06%max C:1.0%max Fe:4%max P:0.05%max |
| CaFe Cored Wire | 9mm/13mm/16mm | 140/260/360 | Ca:30%min Fe:68%min Al:0.8%max |
| C Cored Wire | 9mm/13mm/16mm | 55/140/210 | C:98.5%min Ash:0.45%max V:0.4%max S:0.5%max H2O:0.3%max P:0.2%max |
| Pure Ca Cored Wire | 9mm/13mm | 58/155 | Ca:98.5%min Mg:0.5%max Al:0.5%max |
Products cooperation picture
1.A cored wire hopper unloading device belongs to the technical field of cored wire production equipment. A reduction motor is arranged on the top of the silo, and the output end of the reduction motor is connected to a rotating shaft. A spiral strip is arranged on the outside of the rotating shaft, and a first spiral blade and a second spiral blade are arranged on the rotating shaft. The discharge port of the silo is located above the cored wire steel strip. The spiral strip is spiral-shaped, and the upper end of the spiral strip is welded and fixed to the upper part of the rotating shaft, and a gap is left between the outside of the spiral strip and the inner wall of the silo. The cored wire hopper unloading device is provided with spiral strips and spiral blades, and the spiral strips are stirred and the spiral blades are squeezed by adding and reducing motors in the cored wire silo, thereby solving the quality problems of powder stratification, uneven material dropping, and uneven product composition in the production of cored wire.
