Graphite Electrode specification
The Carbon Electrode by ZhenAn is considered to be of high quality in the Chinese and international markets.
| Item | Unit | RP | HP | UHP | ||||
| 250-400 | 450-800 | 300-400 | 450-700 | 300-400 | 450-700 | |||
| Electric Resistivity | Electrode | μΩ.m | 7.5-8.6 | 7.5-8.8 | 5.5-6.8 | 5.5-7.0 | 4.6-6.0 | 4.8-6.2 |
| Nipple | 4.5-5.5 | 4.0-5.0 | 3.5-4.5 | |||||
| Bending Strength | Electrode | MPa | ≥8.0 | ≥11.0 | ≥11.0 | |||
| Nipple | ≥15.0 | ≥16.0 | ≥18.0 | |||||
| Elastic Modulus | Electrode | GPa | ≤9.0 | ≤11.0 | ≤13.0 | |||
| Nipple | ≤13.0 | ≤14.0 | ≤15.0 | |||||
| Bulk Density | Electrode | g/cm3 | 1.55-1.65 | 1.63-1.73 | 1.65-1.75 | |||
| Nipple | 1.70-1.75 | 1.73-1.80 | 1.75-1.82 | |||||
| Ash | Electrode | % | ≤0.3 | |||||
| Nipple | ||||||||
| CTE(100-600)ºC | Electrode | 10-6/ºC | 2.00-2.50 | 1.80-2.00 | 1.30-1.50 | |||
| Nipple | 1.50-1.80 | 1.50-1.80 | 1.20-1.40 | |||||
REMARK: the above data is just on the standard of YB/T, the actual product is different from the above. For the actual, be free to contact us, please.
Packaging Details: in wooden case or package as customer's order
Payment term: T/T OR L/C
Delivery time: Within 7 days after receiving prepayment
Service: We can supply you with free samples, a booklet, a laboratory test report, an Industry Report, etc.
Welcome to our factory and company for a visit!
Good Quality Hot Sale UHP/HP/RP Graphite Electrode for Steel Making
Electrochemical industry: In electrochemical equipment such as electrolytic cells and electroplating tanks, graphite electrodes are often used as anodes or cathodes to participate in electrochemical reactions.
Metal smelting: In addition to steelmaking, graphite electrodes can also be used in the smelting process of aluminum alloys, copper alloys, and other metals.
Refractory materials: The high-temperature resistance of graphite electrodes enables them to be used in some refractory materials, enhancing the thermal resistance of the materials.
New energy field: Graphite electrodes also have certain applications in new energy fields such as fuel cells and lithium-ion batteries.
In summary, graphite electrodes have important uses in many industrial fields, and their high electrical conductivity, high-temperature resistance, and chemical stability make them an ideal electrode material.

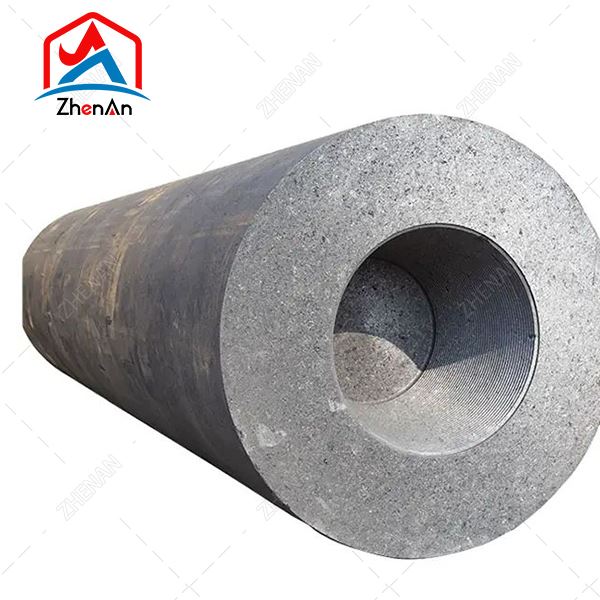

Graphite Electrodes are packed on wooden pallets with steel strips. And the nipples is preset in the sockets.
